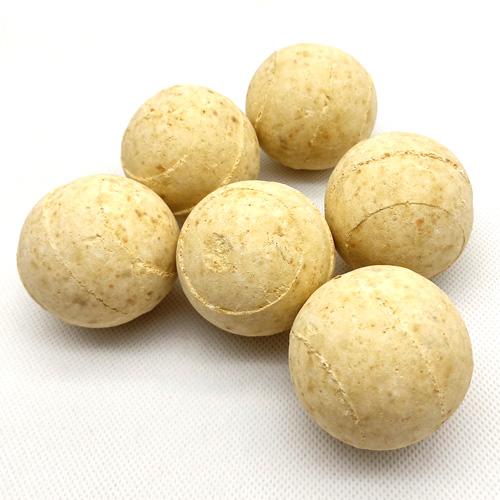

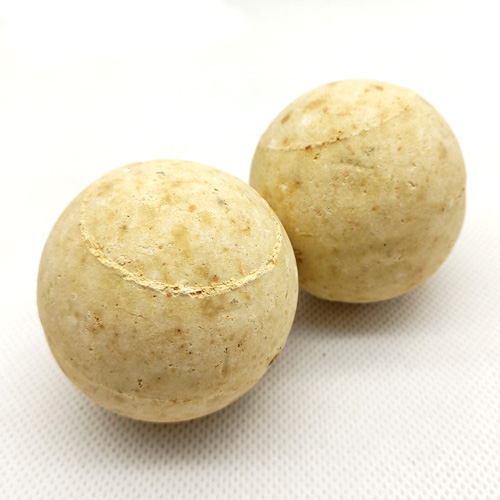

The alumina ball is also called the high aluminum accumulation of heat ball.High alumina refractory ball is based on bauxite as the mainly raw refractory material.Adding powder and additives and anchoring agent.After proportioning, molding and high sintering to make it.The production engineering of high alumina refractory ball is similar to that of high alumina refractory brick.It should be based on the properties of raw materials,high alumina refractory ball requires production conditions and other factors to determine.
40-75% refractory alumina ball for hot blast stove
The alumina ball is also called the high aluminum accumulation of heat ball.High alumina refractory ball is based on bauxite as the mainly raw refractory material.Adding powder and additives and anchoring agent.After proportioning, molding and high sintering to make it.The production engineering of high alumina refractory ball is similar to that of high alumina refractory brick.It should be based on the properties of raw materials,high alumina refractory ball requires production conditions and other factors to determine.
The function of high aluminum refractory ball:it mainly stacked in industrial kilns, which can achieve the effect of accumulation of heat.
The application of high aluminum refractory ball : it can be used in the blast furnace ironmaking of Cowper blast air heater, high and low temperature conversion furnace in chemical fertilizer plant, conversion furnace, hydrogenation converter, desulphurization trough and methane furnace.Reformer, hydrogenated converter and desulphurizing tank.,Methane furnace.
High aluminum refractory ball index
|
Item |
High alumina |
Low creep |
Mullite |
Corundum |
|
Size(mm) |
40-80 |
40-80 |
40-80 |
40-80 |
|
AL2O3(%) |
65 |
70 |
75 |
95 |
|
Refractoriness under load(°C) |
1450 |
1460 |
1530 |
1650 |
|
Apparent Porosity(%) |
25 |
23 |
22 |
18 |
|
Bulk Density(g/cm3) |
2.3 |
2.4 |
2.5 |
3.1 |
|
Cold crushing strength(Mpa) |
13 |
14 |
32 |
36 |
|
Thermal shock resistance (1100°Cwater cooling) cycle ≥ |
15 |
10 |
20 |
7 |
|
Refractoriness(°C) |
1710 |
1750 |
1800 |
1800 |
(1)The heat storage capacity is strong and the heat storage effect is good
(2)The creep properties is good.
(3)High compression strength and good abrasive resistance.
(4)The chemical stability is good.
(5)Good resistance to elevated temperatures.
Magnesia chrome bricks are refractory products with magnesia (MgO) and chromium trioxide (Cr2O3) as the main components, and periclase and spinel as the main mineral components. The main raw materials for the manufacture of magnesia-chrome bricks are sintered magnesia and chromite.
High alumina brick is mainly used for lining of blast furnace, hot blast furnace, electric furnace roof, reverberatory furnace and rotary kiln. In addition, high alumina brick also widely used as open hearth regenerative lattice brick, pouring system with plug,such as nozzle brick.
Refractory castable is a kind of refractory material that does not need to be formed and has good fluidity after being fired and stirred with water.
Chrome corundum brick refers to corundum refractory products containing Cr2O3. At high temperature, Cr2O3 and Al2O3 form a continuous solid solution, so the high temperature performance of chromium corundum products is better than that of pure corundum products. Chromium corundum products are widely used, and the content of Cr2O3 is mostly in the range of 9% to 15%.
The heavy part of the raw materials for the chrome zirconium corundum composite brick is sintered tabular corundum, high-purity chromium oxide, high-purity zircon, and Guangxi white cement.As the main raw material, the light part of the raw material is made of 47 mullite, kyanite, floating beads and coke gemstones as the main raw materials. During molding, a separator is set in the middle of the mold, and heavy materials and light materials are added at both ends. After high pressure molding , finished products made of high temperature sintering.
Common low-creep high-alumina bricks can be used in blast furnace hot blast stoves, as well as other industrial kilns, and can also be made into low-creep high-alumina bricks of different sizes according to specific construction requirements, such as lattice bricks, special-shaped bricks, anchor bricks, etc. , mainly used in industrial kilns in long-term high temperature environments
Silica brick: an acidic refractory mainly composed of tridymite, cristobalite and a small amount of residual quartz and glass phases. Its silica content is more than 94%, it has anti-acid slag erosion performance, high high temperature strength, high load softening temperature, long-term use in high temperature flower wells without deformation, but low thermal shock stability (heat exchange in water is 1-4 Second-rate).
High alumina brick is one of the indispensable basic refractory materials in the upper and middle parts of blast furnace body in iron and steel industry
