Fireclay bricks are classified as weak acid refractories. Due to the large fluctuation range of chemical composition, different production methods, and differences in firing temperature, the properties of clay bricks change greatly.We can produce all kinds of Fireclay bricks according to customers' requirements
Fireclay bricks for hot-blast stoves
The combustion chamber of the hot blast stove is the space for gas combustion. The setting of the combustion chamber space has a great relationship with the furnace type and structure of the hot blast stove. In the medium and low temperature area, ordinary high alumina bricks and Fireclay bricks can be tried.
The physical and chemical indicators of ordinary Fireclay bricks for hot blast stoves are as follows:
term |
|
|||
RN-42 |
RN-40 |
RN-36 |
||
Al2O3%≥ |
42 |
40 |
36 |
|
Bulk density/(g/cm3) |
2.00~2.20 |
2.00~2.20 |
2.00~2.20 |
|
0.2Mpa Load softening start temperature℃≥ |
1410 |
1350 |
1300 |
|
Permanent liner change/% |
(1400℃×2h) |
-0.4~+0.1 |
- |
- |
(1350℃×2h) |
|
-0.5~0 |
-0.5~0 |
|
Apparent porosity/%≤ |
22(24) |
22(24) |
22(24) |
|
Cold crushing strength/MPa≥ |
35 |
30 |
25 |
|
Note 1: The data in parentheses are the indicators of the regenerator checkered bricks Note 2: The bulk density index is the reference index of the design brick quantity, not for reference |

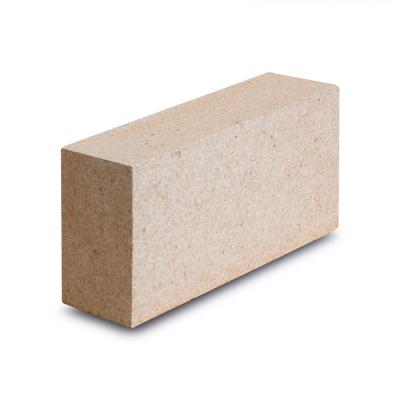

Features of Fireclay refractory bricks:
Fireclay refractory bricks belong to weak acid refractory products, which can resist the erosion of acid slag and acid gas.
Fireclay bricks have good thermal properties and are resistant to rapid cooling and rapid heating.
Fireclay bricksis suitable for supporting hot blast stoves of large, medium and small blast furnaces
low porosity clay bricks are mainly used in the regenerators of glass kilns. They can also be used in blast furnaces and hot blast furnaces in the steel industry; cement kilns in the building materials industry; chemical kilns in the chemical industry as kiln linings
The Al2O3 content of clay heat Clay insulating refractory bricks is generally more than 40%, and the Fe2O3 content is less than 2.0-2.5%. The clinker in the ingredients is 65-85%, and the combined clay is 35-15%. The crushed bonded clay and the finely ground clinker are mixed and milled, and then mixed with the granular clinker to make semi-dry mud, high pressure molding, and sintering at about 1400 ℃, with good performance.
The refractoriness of clay bricks is comparable to that of silica bricks, up to 1690~1730℃, but the softening temperature under load is more than 200℃ lower than that of silica bricks. Because in addition to the high refractory mullite crystal, the clay brick also contains nearly half of the low melting point amorphous glass phase.
Corundum refractory castable has the characteristics of high strength and good fluidity, which is convenient for construction. It is mainly used for the parts that are easy to be washed and worn, such as the combustion chamber, separator and flue of circulating fluidized bed boiler.
The Al2O3 content of clay heat Clay insulating refractory bricks is generally more than 40%, and the Fe2O3 content is less than 2.0-2.5%. The clinker in the ingredients is 65-85%, and the combined clay is 35-15%. The crushed bonded clay and the finely ground clinker are mixed and milled, and then mixed with the granular clinker to make semi-dry mud, high pressure molding, and sintering at about 1400 ℃, with good performance.
Insulating high alumina refractory bricks mainly refer to refractory products with an aluminum content of more than 48%. They are also called lightweight high-alumina bricks or heat-insulating high-alumina bricks due to their advantages of low bulk density, light weight, and good heat insulation effect. . It is a kind of thermal insulation refractory brick commonly used in high temperature industrial kilns and thermal equipment.
High alumina brick is mainly used for lining of blast furnace, hot blast furnace, electric furnace roof, reverberatory furnace and rotary kiln. In addition, high alumina brick also widely used as open hearth regenerative lattice brick, pouring system with plug,such as nozzle brick.
