Refractory ramming mass (refractory taphole mass) is a kind of Refractory used for lining of blast furnace tapping groove. It is mainly used to protect the blast furnace out of the ditch from high-temperature hot metal and slag erosion and erosion, and has excellent high-temperature resistance and wear resistance. The ramming material for the iron discharge ditch is usually composed of corundum, silicon carbide and carbonaceous material, which has the ability of resisting hot metal and molten slag erosion and scouring, reburning line change small, strong resistance to a variety of oxidation characteristics. The construction of the ramming material for the iron ditch is convenient, easy to dismantle and repair, does not produce harmful gas, and is beneficial to environmental protection.
Item NO.:
YYH-850Payment:
T/TProduct Origin:
CHINALead Time:
7-15
Refractory ramming mass (refractory taphole mass) is widely used in the tapping ditch of blast furnace less than 1000m ~ 3, but there is only one tapping ditch in this kind of blast furnace, the tapping is frequent, the interval time is short, and the castable material can not be used. Therefore, Refractory ramming mass (refractory taphole mass) is a kind of Refractory used for lining the tapping groove of blast furnace. The utility model is mainly used for protecting the iron outlet ditch of the blast furnace from being eroded and scoured by high-temperature hot metal and molten slag. Al2O3-SiC-C is the main material used in modern Refractory. However, according to the different construction methods, it can be divided into castable material, vibrating material, ramming material, prefabricated trough four kinds.
The refractory material for iron and slag runner of blast furnace is mainly Al2O3-SIC-C raw materials, with many varieties. However, according to the different building methods, it can be divided into four types: castable material, vibrating material, Refractory ramming mass and prefabricated tank.

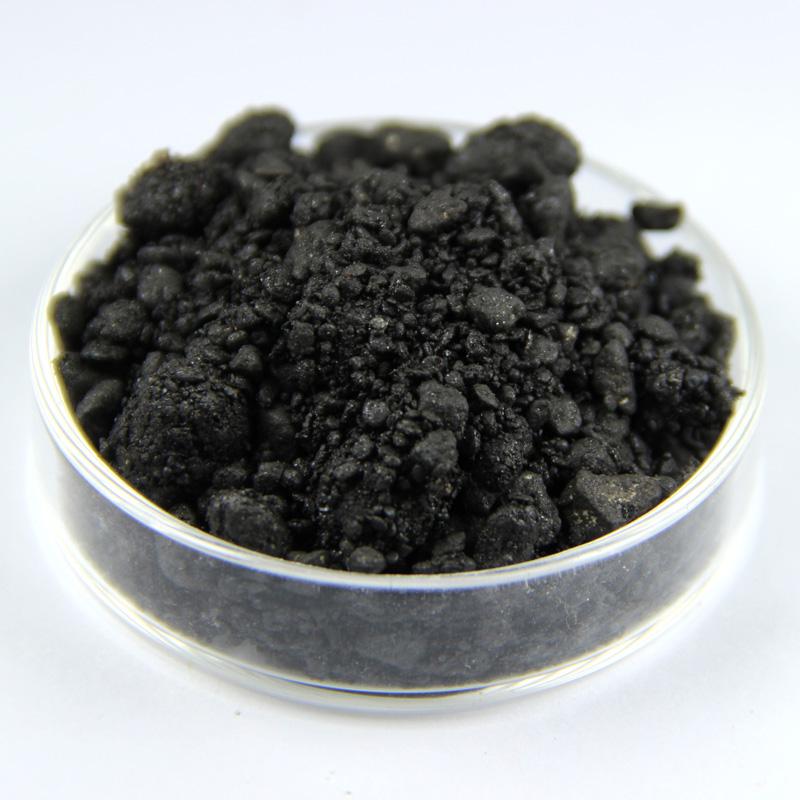

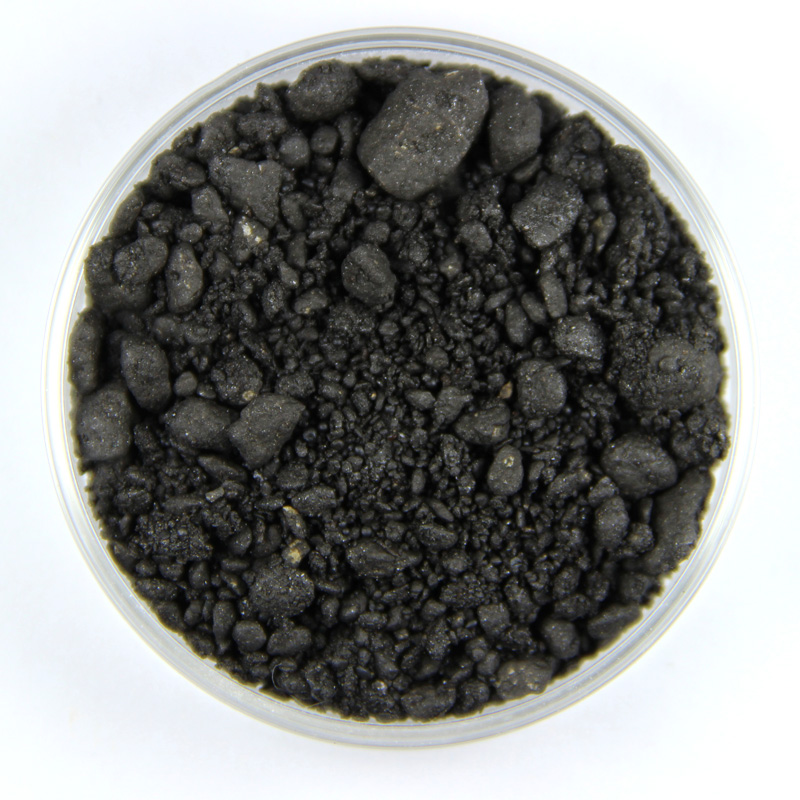

Product photos：
the lining material of the iron discharge ditch has strong erosion resistance to molten iron and molten slag;
Good thermal shock resistance and stability;
The volume change of heavy firing is small;
Strong antioxidant capacity;
Convenient for construction;
Non-bonded slag iron,
Easy to repair and dismantle;
With uniform, high-density structure, high strength;
Do not produce harmful gases, conducive to environmental protection.
High-quality Refractory ramming mass (refractory taphole mass) for iron ditch should have the following properties: excellent anti-burst performance, good thermal shock resistance and oxidation resistance, good resistance to high-temperature melting slag, molten iron melting and erosion performance, non-adhesion slag iron; Suitable bulk density, porosity and sintering properties.
1) aggregate and fine powder: we choose 88% bauxite, 95% brown corundum and 97% white corundum as aggregate and fine powder, and add a little chromium oxide to further improve the slag resistance and thermal shock stability of the product.
2) silicon carbide: the amount of silicon carbide is increased, the grade of silicon carbide of 0-1mm is increased, and the slag resistance of iron ditch material is improved. 3) choice of binder: choose the thermosetting Phenol formaldehyde resin produced by big factories.
The index of Refractory ramming mass (refractory taphole mass):
|
Al2O3（%） |
≥65 |
65.17 |
65.04 |
|
SiC+C（%） |
12 |
14.55 |
14.55 |
|
Volume density（g/cm3） |
2.55 |
2.68 |
2.21 |
|
Compressive strength（MPa）（1450℃/3h） |
≥8 |
15 |
18 |
|
High temperature bending resistance（MPa）（1450℃/3h） |
2.7 |
3.1 |
5.8 |
|
Linear change（%）（1450℃/3h） |
-0.5～+0.5 |
-0.2 +0.4 |
|
1) strictly control the product quality and the purchase channel, do the laboratory analysis of each batch of raw materials (such as some important indicators: content, water content, particle size, body density and so on) , and make the record, which is convenient for the later comparative analysis and traceability. In principle, excessive moisture content of raw materials to be treated to meet the standard before use. 2) all kinds of raw materials and products should be classified and labeled to prevent mixing, but also should pay attention to waterproof moisture. 3) add resin ramming material product general storage period is 20 days, if the storage time is too long, easy hair dry, hard to ramming molding.

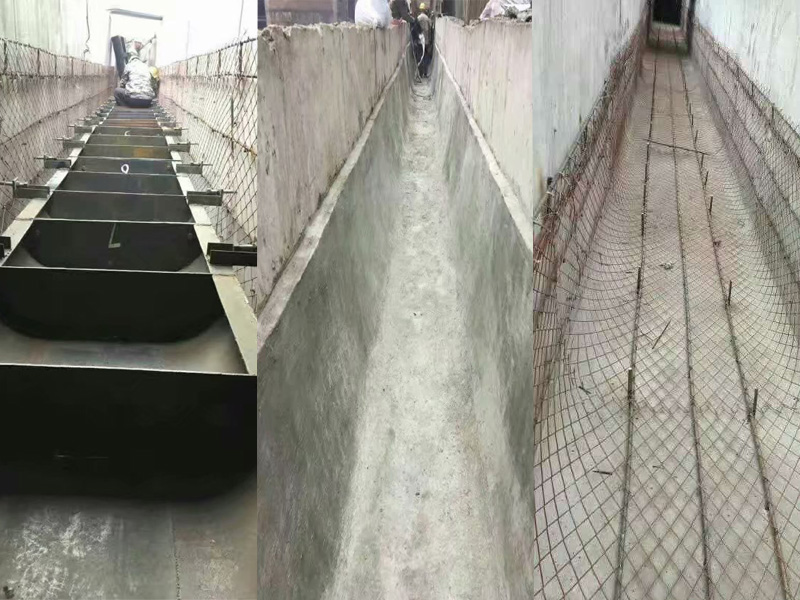

Construction of Refractory ramming mass (refractory taphole mass):
We carry on the onboarding training to the construction worker, asks the worker who has dug the ditch in the blast furnace before to be the construction team foreman. Under normal circumstances, ditch body lining at least 3 days before the repair and ditch cleaning, usually only a small area of repair and maintenance can be. Site construction should also pay attention to the following points.:
1) when repairing ditches and clearing ditches, only a small amount of water can be sprinkled in order to cool down. If there is molten iron ditch, with sand and molten iron slag, and then pry up, it is best not to use air blowing, otherwise molten iron will enter the non-sintered refractory.
2) when repairing the ditch and clearing the ditch, not only should the residue and iron in the ditch be cleaned, but also the severely burned tamping material be cleaned, and then be blown clean by the trachea. At the same time both sides of the ditch sand clean to avoid sand into the iron ditch ramming material.
3) the material thickness of the bottom of the main ditch body is generally 300mm-600mm. It should not be rammed after one-time feeding. It should be continuously rammed and compacted layer by layer. The material thickness of each layer is about 100mm.
4) the tamping material should be checked before use, and the products that have hardened and dried out should not be used. The slag skimmer must avoid artificial impurities into the slag skimmer.
5) after ramming, must carry on with the fire roast 5-10 minutes, causes the ramming material surface to harden.
Silicon carbide-carbonaceous cooling stave refractory ramming mass (refractory taphole mass): has the characteristic which other materials do not have. The construction is simple, the craft request is simpler than inlays the refractory brick, the price is affordable. The ramming material of various parts of a blast furnace:
|
/ |
Cast iron ditch material and precast trough |
Ramming mass for iron and slag runner of blast furnace
|
Ramming mass for iron and slag runner of blast furnace
|
Spray mending material |
Special cement for hot metal tank |
|||||
|
/ |
TJG-70 |
TJZ-65 |
TJD-60 |
TDZ-60 |
TDD-50 |
TAG |
AG |
PLS |
ASC |
|
|
chemical composition |
Al2O3(%) |
≥70 |
≥65 |
≥60 |
≥60 |
≥50 |
≥60 |
≥60 |
≥65 |
≥ |
|
Sic+C(%) |
≥12 |
≥12 |
≥15 |
≥16 |
≥14 |
≥8 |
|
≥10 |
Sic+C ≥15 |
|
|
Volume density |
110°C*24h |
≥2.8 |
≥2.6 |
≥2.4 |
≥2.2 |
≥1.9 |
≥2.5 |
≥2.3 |
≥2.6 |
1-2min |
|
1450°C*3h |
≥2.6 |
≥2.5 |
≥2.2 |
≥2.2 |
≥1.9 |
≥2.5 |
≥2.2 |
≥2.6 |
|
|
|
Compressive strength |
110°C*24h |
≥30 |
≥20 |
≥15 |
≥15 |
≥10 |
≥30 |
≥40 |
≥25 |
|
|
1450°C*3h |
≥45 |
≥40 |
≥40 |
≥20 |
≥15 |
≥60 |
≥50 |
≥50 |
|
|
|
Linear rate of change |
1450°C*3h |
±0.5 |
±0.5 |
±0.5 |
±1.5 |
±1.5 |
±0.5 |
±0.5 |
±0.5 |
|
|
Features |
Resistance to erosion, erosion resistance, high density and high strength |
Anti-erosion, anti-erosion, non-baking medium-range ramming material molding can be put into use |
High strength resistance to corrosion and thermal shock |
Resistance to erosion |
Good Operation Performance, erosion resistance |
|||||
|
Purpose |
Iron ditch permanent lining, working lining, main ditch, iron line, slag line, main ditch swing ditch, slag ditch |
Tamping or filling of prefabricated joints in the drain |
Main gutter cover |
Branch trench cover and dust cover |
Spray repair of iron ditch and hot metal tank |
For laying al2o3-sic-c bricks |
||||
|
Notes |
Suitable for large and medium blast furnace can be used as prefabricated parts |
Middle-grade products are divided into baking type, non-baking type |
Cheap stuff |
Prefabricated or poured |
/ |
|||||
Refractory ramming mass (refractory taphole mass) manufacturer according to your requirements shipping :
1.20GP FCL :25-26TONS
2.40GP FCL: 25-28TONS
3.40HQ FCL:25TONS or 28 TONS
The above quantity without pallet ,the goods will be sent within 7-15days after receiving your order.
Gongyi Yuying Refractory Co., Ltd FAQ
We can provide samples for free and charge shipping.
1. What is your MOQ?
Our product MOQ is 10 kg.
2. What kind of software package will we use?
25 kg plastic bags can also be customized.
3. What is the delivery time?
1*20 GP container takeS about 3 to 5 days.
4. Can you give me a discount?
Yes, we can negotiate
5. Can you give me advice based on the information we describe?
Of course, our mission is to provide you with professional services.
6. What is the shipping method?
Shipping, air, express. International train
7. What is the type of your company?
We are a Manufacturing & Trading Combo.
How do I get in touch with your company?How do I get a technical specification for a product?
You can contact us by email: yuyingamy@outlook.com. Whatsapp: +8613215996925. or Wechat : 13215996925.You can also visit our website at website for more information.
Our equipment：
Gong Yi Yu Ying Refractory Co. , Ltd. is a professional Refractory r & D, production and sales enterprises. The company mainly produces refractory bricks, refractory balls, mortar and other products, widely used in Refractory, sandblasting materials, precision casting and other industries. Yu Ying Refractory Refractory products have excellent high temperature resistance and fire resistance, to meet the needs of different Refractory. The company has advanced production equipment and technical team, in strict accordance with national standards and industry standards for production, to ensure product quality and performance.
Gong Yi Yu Ying Refractory Co. , Ltd. has a wide range of Refractory products, including Refractory, refractory bricks, fireballs, mortar, etc. . Amorphous Refractory include ladle castables, mud-sheathed castables, corundum castables, steel fiber castables, ladle castables, drain castables, etc. Refractory brick includes high alumina brick, clay refractory brick, thermal insulation brick, checker brick, lightweight refractory brick, etc. The clay includes functional anhydrous clay, environment-friendly anhydrous clay, vanadium-titanium clay, nickel-iron clay, etc. .
Gong Yi Yuying Refractory Co. , Ltd. is committed to providing high-quality Refractory products to meet customers' different needs. At the same time, the company also provides professional technical support and The Adjuster, to ensure that customers in the use of the process to obtain satisfactory results. Thank you for your attention and support! We attach great importance to your needs and are willing to provide you with the best service. If you have any questions or need help, please feel free to contact us: Email: yuyingamy@outlook. com. Whatsapp: + 8613215996925. Or Wechat: 13215996925. We will answer your questions as soon as possible. Thank you for your trust and look forward to working with you!
